PBH Pouch Cell Holders
Holder clamps for mono-channel pouch cells
Three versions are available for pouch cell testing. With a maximum current of 25, 50 or 100 A, these 4-point connection holders allow for high-accuracy measurements.
Depending on your needs, three versions of the holder are available with different maximum current specifications, 25 A, 50 A or 100 A.
The PBH series batter holders use a 4-point connection mode to measure voltage and current separately, minimizing connection impedance for more accurate measurements for pouch cell tests.
The clamp-type connectors allow optimal and repeatable contact pressure while still being very easy to use.
Mounted on a guide rail to improve its stability, these holders can be adapted to every type of cell geometry. With an operating range of temperature from -30°C to 80°C, they are also climate chamber ready. The PBH-series is designed to fit the current needed
- The PBH-125, with a current range up to 25 A, has two 4 mm receptacles for power, and 2 mm receptacles for the sense. The PBH-125 is best paired with the BCS-915 and BCS-1012 battery cyclers and for potentiostats, this can be used with boosters for essential potentiostats and internal boosters for premium potentiostats
- The 50 A version called PBH-150 is provided with 6 mm eyelet type receptacles for the power, and 4 mm receptacles for the sense. This version is compatible with boosters for the premium and essential ranges including FlexP-0060, HCV-3048, and HCP-803/1005, but can also be used for the BCS-900, especially the BCS-975.
- The PBH-1100 has the highest current range, up to 100 A, and can also be used with the FlexP-0060, HCV-3048, HCP-803/1005, and the BCS-900 series, especially the BCS-975R

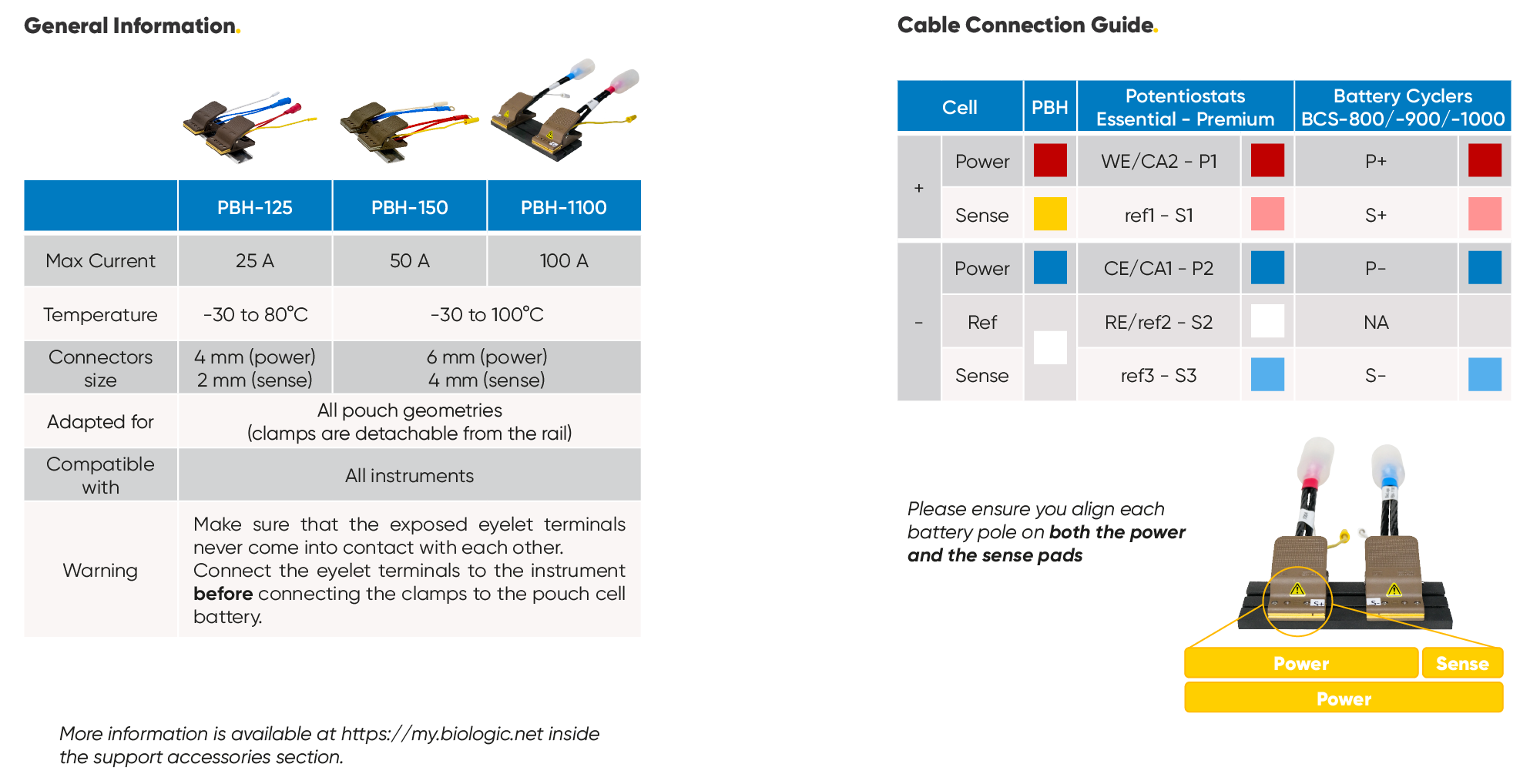

The connection colors follow the convention used for other battery holders (except BH1-i):
Specifications and ordering information
PBH-125 | PBH-150 | PBH-1100 | |
| Cell type | Pouch | ||
| Min separation distance between leads | 0 cm | ||
| Max separation distance between leads | 11 cm (using the guide rail) | ||
| Number of channels | 1 | ||
| Max current | 25 A | 50 A | 100 A |
| Connectors size* | 4 mm(power) / 2 mm (sense) | 6 mm (power) / 4 mm (sense) ** | |
| Measurement type | 4-point | ||
| Internal resistance | < 3 mΩ | ||
| Measured internal resistance with 4-point connection | Negligible | ||
| Compatable with | All instruments | ||
| Operating temperature range | -30 to 80 °C | -30 to 100 °C | |
| Size : H x W x D | 40 x 150 x 210 mm | ||
| Weight | 0.2 kg | ||
| Catalog No | 092-P25/1 | 092-P50/1 | 092-P100/1 |
* The 6 mm receptacle is an eyelet ring. For an easy connection with CC4-60A, CC8, FlexP 0160/0060, please quote an additional connection kit: 094-110/CNT
** Measured with the two clamps mounted on the guiding rail. The clamps can be detached from the guiding rail to accommodate large geometry batteries. All pouch geometries
(clamps are detachable from the rail)
Depending on your needs, three versions of the holder are available with different maximum current specifications, 25 A, 50 A or 100 A.
The PBH series batter holders use a 4-point connection mode to measure voltage and current separately, minimizing connection impedance for more accurate measurements for pouch cell tests.
The clamp-type connectors allow optimal and repeatable contact pressure while still being very easy to use.
Mounted on a guide rail to improve its stability, these holders can be adapted to every type of cell geometry. With an operating range of temperature from -30°C to 80°C, they are also climate chamber ready. The PBH-series is designed to fit the current needed
- The PBH-125, with a current range up to 25 A, has two 4 mm receptacles for power, and 2 mm receptacles for the sense. The PBH-125 is best paired with the BCS-915 and BCS-1012 battery cyclers and for potentiostats, this can be used with boosters for essential potentiostats and internal boosters for premium potentiostats
- The 50 A version called PBH-150 is provided with 6 mm eyelet type receptacles for the power, and 4 mm receptacles for the sense. This version is compatible with boosters for the premium and essential ranges including FlexP-0060, HCV-3048, and HCP-803/1005, but can also be used for the BCS-900, especially the BCS-975.
- The PBH-1100 has the highest current range, up to 100 A, and can also be used with the FlexP-0060, HCV-3048, HCP-803/1005, and the BCS-900 series, especially the BCS-975R
The connection colors follow the convention used for other battery holders (except BH1-i):
